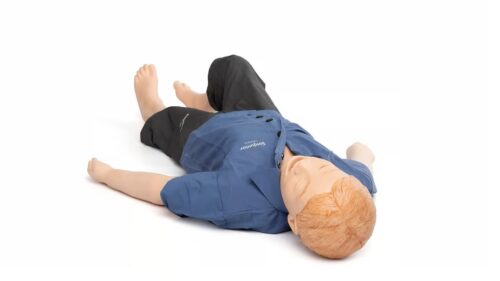

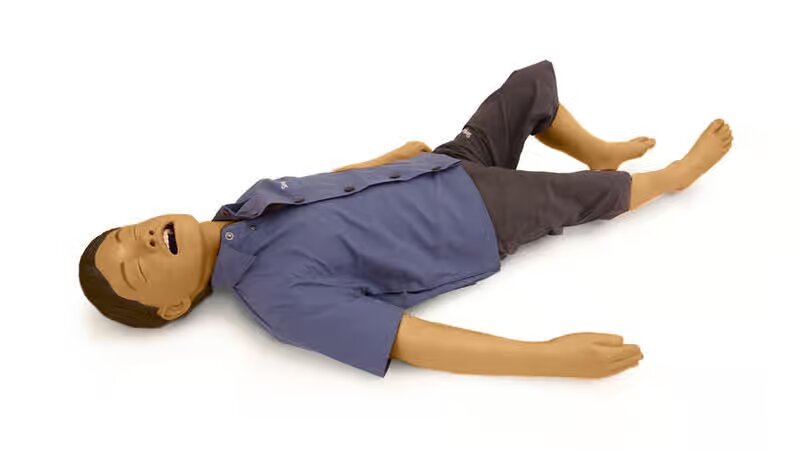

SimJunior®

Description

Breathing

• Simulated spontaneous breathing
• Observable chest rise
• Variable respiratory rates
• Multiple upper airway sounds synchronized with breathing
• Detect mechanical ventilations (including no ventilations)
• Bag Valve Mask capable
• Normal and abnormal breath sounds
• Oxygen saturation and waveform (Optional Patient Monitor)
• Breathing complicationsLeft and right lungs can be either closed or opened to allow ventilations
  • Bilateral chest movement with spontaneous breathing
  • Unilateral chest rise with right mainstem intubation
  • Unilateral and bilateral breath sounds
• Left and right lungs can be either closed or opened to allow ventilations

Airway

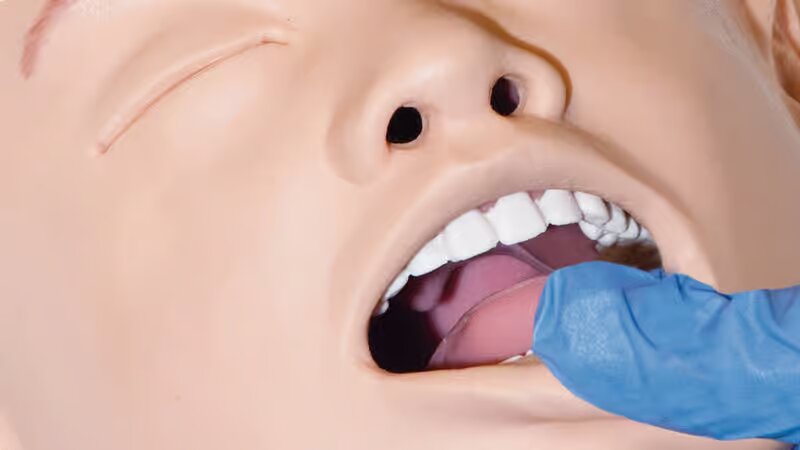

The SimJunior airway is anatomically modeled as far as the trachea.

• Realistic airway with landmarks
• Oral and nasal intubation
• LMA or ET insertion
• Tongue oedema
• NG tube
• Cricoid cartilage
• Head tilt and jaw thrust (no sensor)

Cardiac

• Defibrillation and cardioversion
• Pacing
• Extensive ECG library
• Multiple heart sounds synchronized with ECG
• ECG rhythm monitoring (3 leads)
• 12 lead ECG display (Optional Patient Monitor)

Chest Compressions

• Compliant with 2015 AHA and ERC Guidelines
• CPR compressions generate palpable carotid pulses, blood pressure waveform, and ECG artifacts
• Detection and logging of a series of compressions in the data log

Vascular Access

• IV access (right arm and hand)

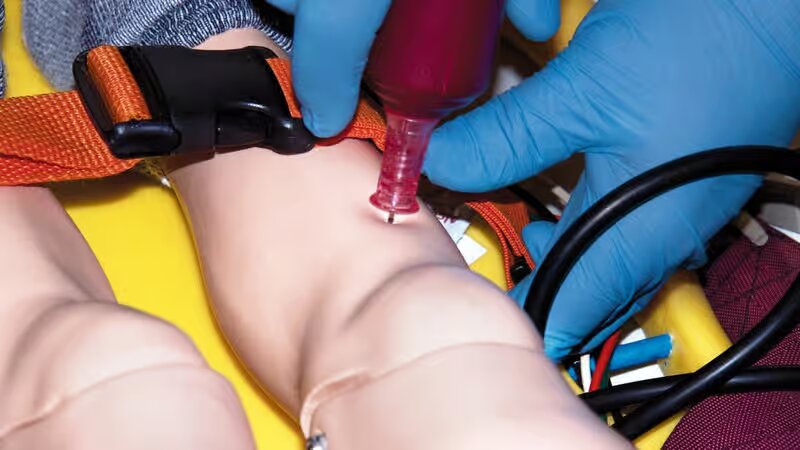

• Intraosseous access (right tibia)

Circulation

• Blood pressure measured manually by auscultation of Korotkoff sounds
• Bilateral carotid and unilateral brachial and radial (left side) pulses synchronized with ECG
• Pulse strength variable with BP
• Pulse palpation is detected and logged

Sounds

• Heart
• Lung
• Bowel
• Patient voice
  • Pre-recorded sounds
  • Wireless microphone

Other Features

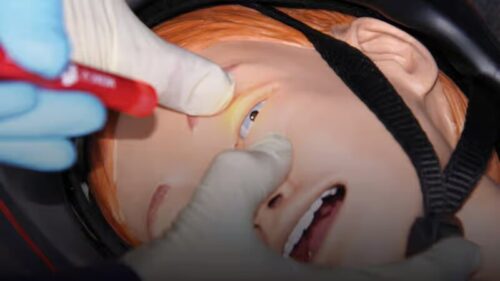

• Interchangeable pupils
  • Normal, Dilated, and Constricted
• Convulsions

Session Viewer (PC operation)

• Web-camera recording
• Review event log together with synchronized recording of the patient monitor and in-room video

Patient Monitor (Optional)

• Highly configurable
• Simulates several parameters including:
  • Heart rate, ECG, SPO2, NIBP, ETCO2
• 12 lead ECG display

Educational Services

• Introduction to SimJunior
• Scenario Programming
• Customized Educational Services

Technical Services

• Professional Installation
• Preventive Maintenance
• Extended Warranty
