SimMan® 3G Trauma

Multiple Airway Skills/Features:

• Controllable open/closed airway; automatically or manually controlled
• Head tilt/Chin lift
• Jaw thrust w/articulated jaw
• Suctioning (Oral and Nasopharyngeal)
• Bag-mask ventilation
• Orotracheal intubation
• Nasotracheal intubation
• Right main stem intubation
• Combitube, LMA, and other airway placement
• Retrograde intubation
• Fiberoptic intubation
• Transtracheal jet ventilation
• Needle cricothyrotomy
• Surgical cricothyrotomy
• Variable lung compliance – 4 settings
• Variable airway resistance – 4 settings
• Stomach distention

Airway Complications:

• Detection of proper head position
• Can’t intubate/Can’t ventilate
• Can ventilate/ Can’t intubate
• Tongue edema
• Pharyngeal swelling
• Laryngospasm
• Decreased cervical range of motion
• Trismus

Breathing Features:

• Spontaneous breathing
• Bilateral and unilateral chest rise and fall
• CO2 exhalation
• EtCO2 and waveform display
• Normal and abnormal breath sounds
  • 5 anterior auscultation sites
  • 6 posterior auscultation sites
• Oxygen saturation and waveform display

Breathing Complications:

• Cyanosis
• Needle thoracentesis – bilateral
• Unilateral and bilateral chest movement
• Unilateral, bilateral and lobar breath sounds
• Chest tube insertion – bilateral

Cardiac Features

• Extensive ECG library
• Heart sounds – 4 anterior locations
• Simulated ECG rhythm monitoring (4 lead)
• ECG Monitoring 3 and 5 lead
• 12 lead ECG display
• Defibrillation and cardioversion
• Pacing

Circulation features:

• BP measured manually by auscultation of Korotkoff sounds
• Carotid, femoral, brachial, radial, dorsalis pedis, popliteal and posterior tibialis pulses synchronized with ECG
• Pulse strength variable with BP
• Pulse palpation is detected and logged

Vascular access:

• IV access (right arm)
• Intraosseous access (tibia and sternum)

CPR:

• Compliant with 2015 Guidelines
• CPR compressions generate palpable pulses, blood pressure waveform, and ECG artifacts
• Realistic compression depth and resistance
• Detection of depth and frequency of compressions
• Detection of leaning
• Real-time feedback on quality of CPR

Eyes:

• Blinking – slow, normal, fast and winks
• Open, closed and partially open
• Pupillary accommodation:
  • Synchrony/asynchrony
  • Normal and sluggish speed of response

Other Features:

• Bleeding
  • Simulation of bleeding at multiple sites
  • Arterial and venous
  • Vital signs automatically respond to blood loss and therapy
  • Works with various wound modules and moulage kits
• Urine output (variable)
• Foley catheterization
• Secretions
  • Eyes, Ears, Nose, Mouth
  • Blood, Mucous, CSF, etc.
• Diaphoresis
• Bowel sounds – four quadrants
• Patient voice
  • Pre-recorded sounds
  • Custom sounds
  • Instructor can simulate patient’s voice wirelessly
• Instructor communication
  • Multiple instructors communicate using integrated
• Voice Over Internet Protocol (VOIP)
• Right leg IM skin

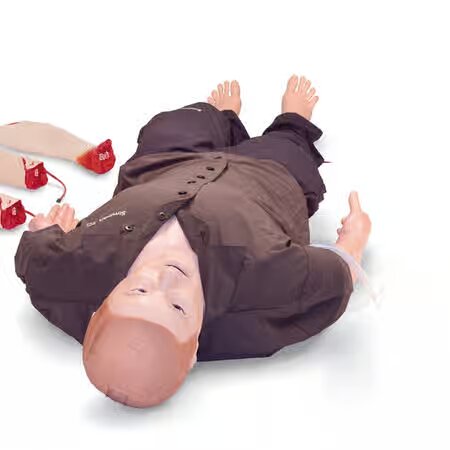

Amputations:

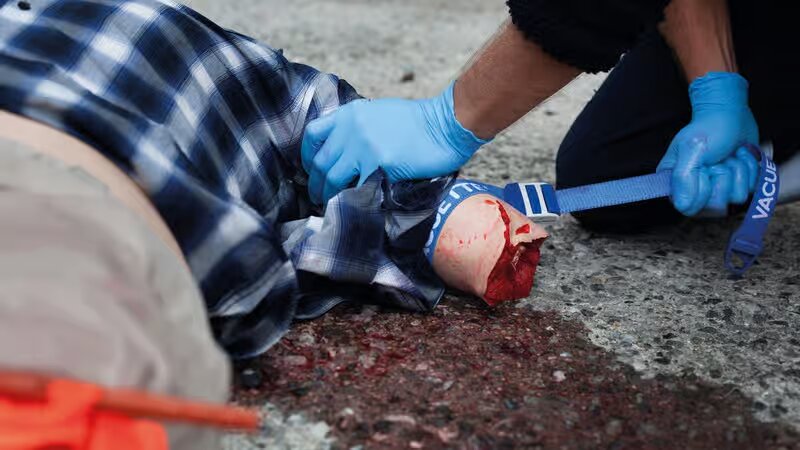

• Amputated left arm
• Amputated left leg
• Amputated right arm
• Amputated right calf skin

System Features:

• Wireless Rugged tablet PC controls simulator remotely
• Control multiple manikins from one interface
• Control simulations from anywhere on your network
• Multiple interfaces can control/observe a single simulation
• Manual Mode
  • Precise control “on the fly”
  • Design and program custom scenarios
  • Create custom events
  • Run pre-programmed scenarios
• Automatic Mode
  • Physiological models run pre-programmed simulations
  • Unique, simple controls increase/decrease difficulty and pace
• Simulation controls:
  • Fast forward
  • Pause
  • Rewind
  • Save/Restore
• Profile Editor
• Future prediction and patient outcome display
• Integrated video debriefing
• Data logging
• Instructor comments

Patient Monitor:

• Wireless
• Highly configurable
• Includes:
  • ECG (2 traces)
  • SpO2
  • CO2
  • ABP
  • CVP
  • PAP
  • PCWP
  • NIBP
  • TOF
  • Anesthetic Agent
  • pH
  • PTC
  • ICP
  • Cardiac output
  • Temperature (core and peripheral)
  • Additional and programmable parameters
• X-Ray display
• 12 Lead ECG display
• Custom image display
• Custom video display
